S Series

Side delivery compost & manure spreader ideal for orchards and vineyards. Available from 8m3 to 20m3.

Options
Capacity 8m3 to 20m3

Contact for price In Stock

Type Trailing
Action Side Delivery
Spreading Product manure, compost, mill mud
Operating Requirements Contact us for details

Description

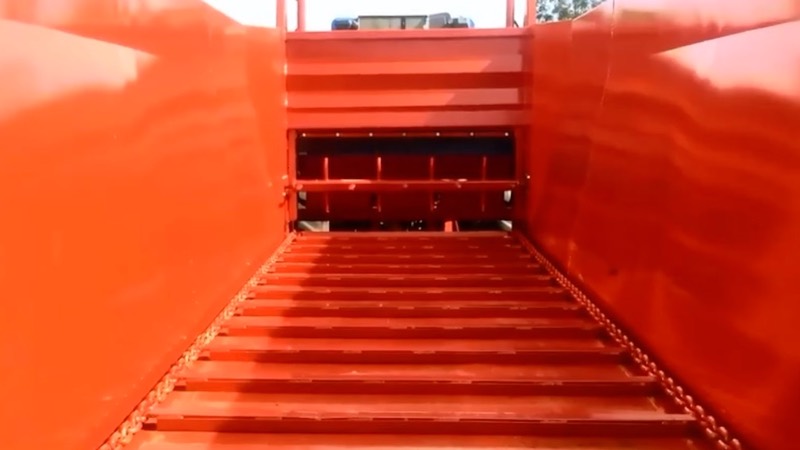

The S Series features a heavy-duty gearbox driving marine-type floor chains, available in either 14mm or 16mm sizes. A heavy-duty agitator breaks apart organic material ready for the simple front belt delivery system. With up to 900mm hydraulic adjustment out the side, the belt can be positioned to deliver exactly where required under the treeline.

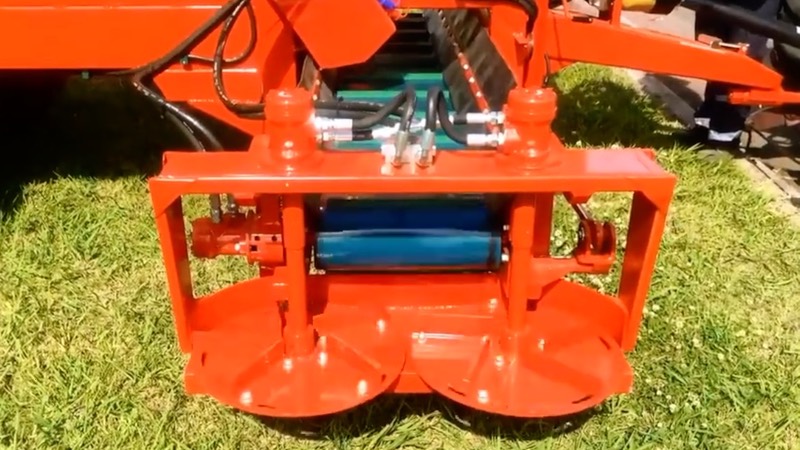

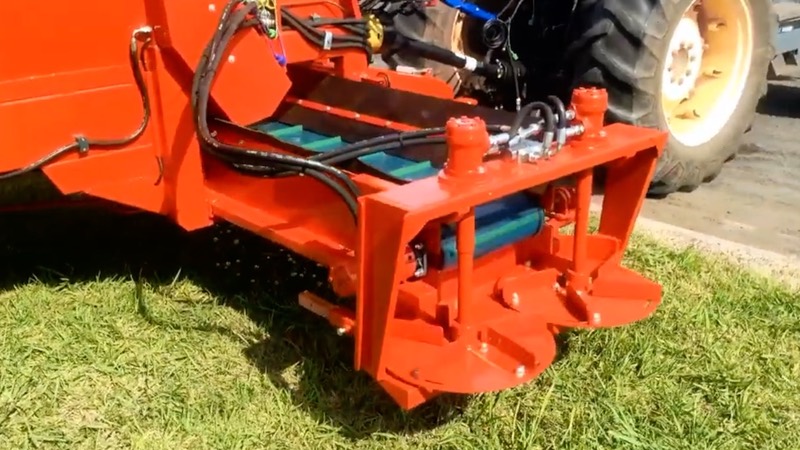

With the addition of our unique hydraulic drive twin spreading discs (optional), material can be spread more evenly under a large canopy (see the video above). The disc assembly can be removed within minutes if a single lateral belt delivery is required again.

The S Series is available from 8m3 to 20m3, with single or tandem axle combinations available.

Optional Extras

  • Optional hydraulic drive twin spreading disc system
  • 8m3 to 20m3 configurations available
  • Single or tandem axle configurations
